AMC Analog Drives: Dipswitch Settings

The AMC B25A20AC, B30A40AC, B40A40AC, B60A40AC, and B100A400AC provide dipswitch settings for various amplifier configurations. It is recommended that you start with the following settings when being used with our run test systems.

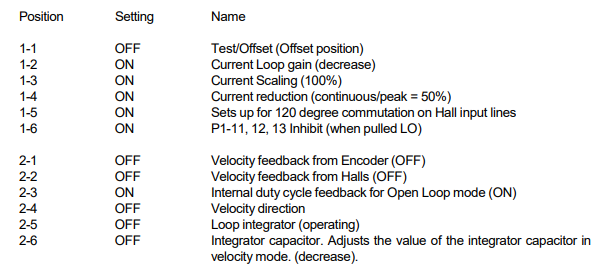

B30A40AC and B60A40AC Dipswitch Settings
You can also reference this in our B30A40 Setup Guide:
https://support.mitchell-electronics.com/hc/en-us/articles/19205097596315-AMC-B30A40AC-Amplifier-Setup-Guide

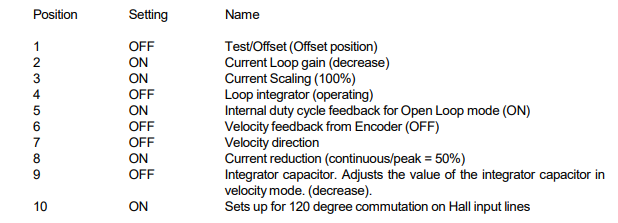

B25A20AC, B40A40AC, and B100A40AC Dipswitch Settings

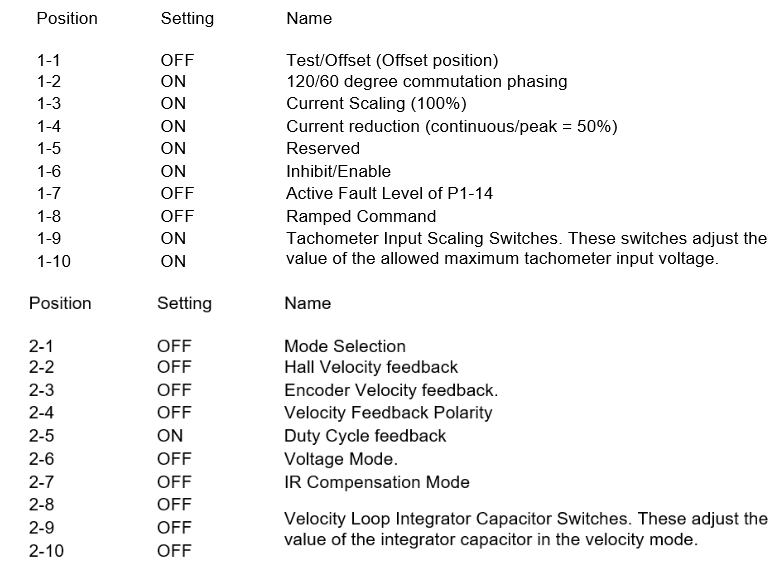

B100A400AC Dipswitch Settings
