AMC B30A40AC Amplifier Setup Guide

GENERAL DESCRIPTION

The Advanced Motion Controls (AMC) amplifiers require some modifications before they can be used with our TI-3000JX system. If you receive your amplifier when purchasing the TI-3000JX, or as a replacement amplifier from Mitchell Electronics, Inc., these modifications will have already been included. However, if you purchase a new or replacement amplifier directly from AMC you will need the Mitchell Electronics, Inc. TI-3012C hardware bundle which includes the extra components required to properly setup the amplifier using this document.

OPERATION

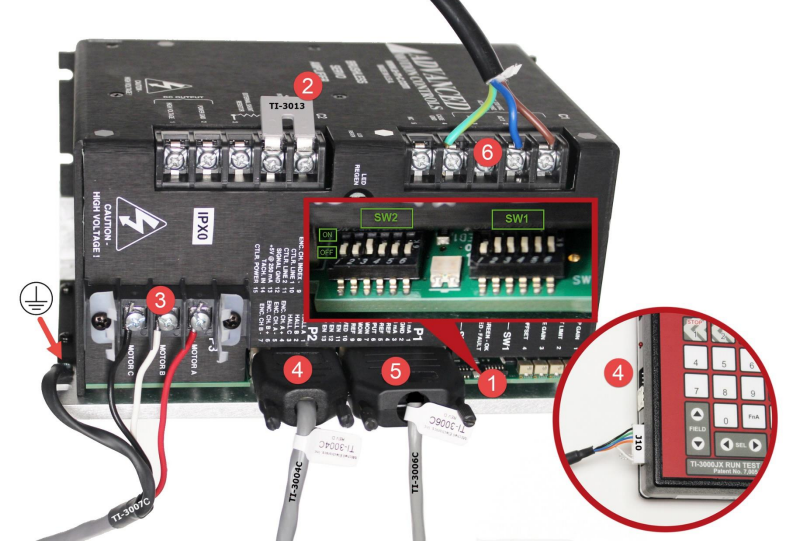

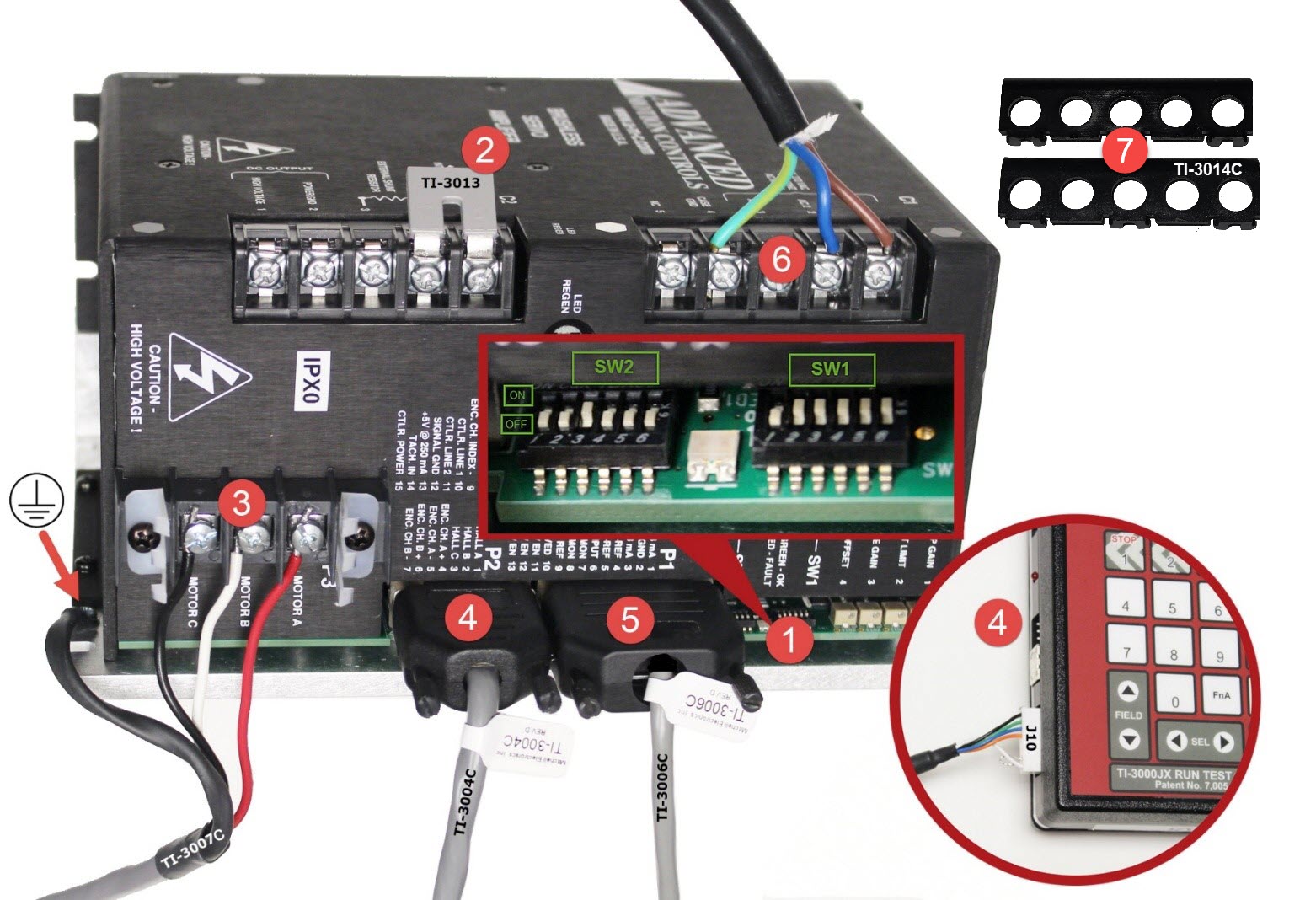

1. Change SW1 and SW2 dipswitch settings to those shown in the table below.

2. Connect the TI-3013 shunt jumper to amplifier C2 terminals 4 and 5, which activates the amplifier’s internal resistor.
3. Connect the TI-3007C motor quick change cable to amplifier P3 terminals.
   Motor A = RED, Motor B = WHITE, Motor C = BLACK, Frame Ground screw = ring terminal.
4. Connect TI-3004C commutation pulse cable to amplifier P2, then the other end to J10 on TI-3000JX.
5. Connect TI-3006C speed command pot to amplifier P1.
6. Connect AC power and ground to C1 terminals. Supports single-phase or 3-phase, 50/60Hz, max 270VAC. Use any of the three AC phase inputs when wiring in single phase supply.
