NUM SHX and SPX Series

The NUM SHX and SPX brushless servomotors come with a single hybrid connector and are fitted with Hiperface DSL encoders. We have not yet received any of these new model series for development, but there should be available selections to test the Hiperface DSL encoders and see if they are storing memory. Please contact us at support@mitchel-electronics.com if you receive one of these motors and we can walk you through connection and testing.

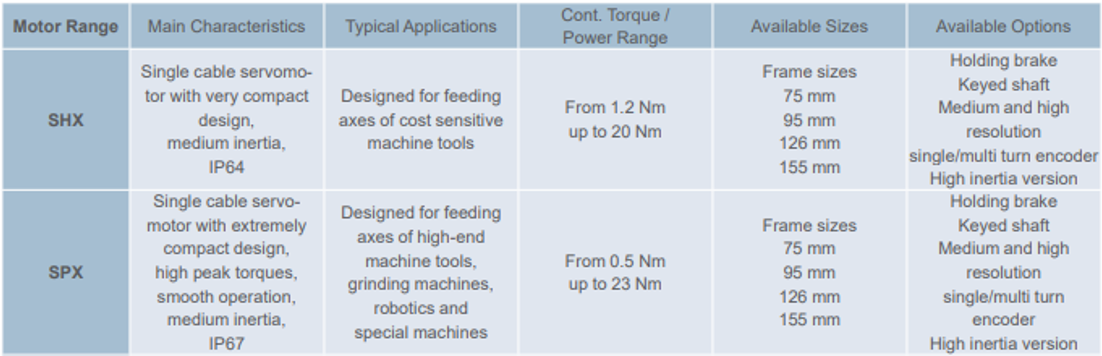

Product Positioning

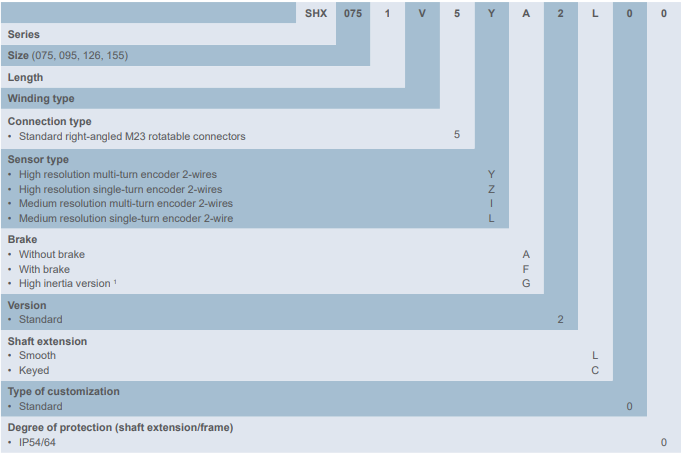

SHX and SPX Ordering Codes

All NUM motors are equipped with an encoder to provide feedback on the angular position of the rotor for phase switching. The position information is also used to close the controller’s position and speed control loops.

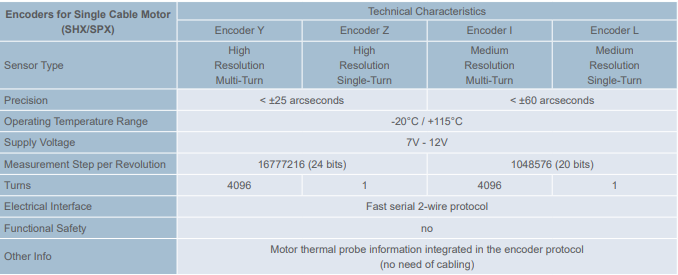

Encoder's Technical Characteristics

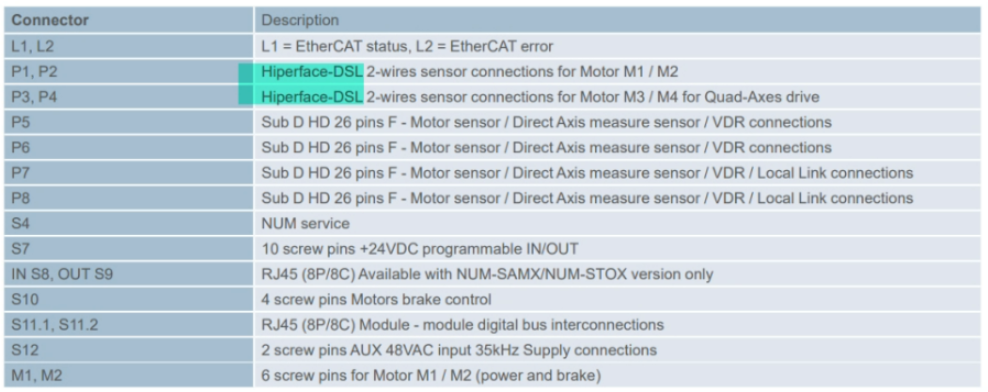

The drive section on the manual specifies that the 2 wire protocol is Hiperface-DSL as shown on the image below.
