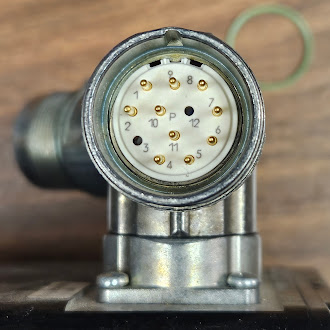

The Intercontec (TE) C4-0016-000-000 is a specialized removal tool designed for unlocking the signal insulator (12 and 17 pin configurations) from Intercontec/TE Connectivity Series 623 M23 feedback receptables. It is typically used for removing the insert rather than individual pin.
Features: The tool includes a handle, a cap plug, and is designed for ease of use in releasing the insulator from the housing.
Steps:
- Prepare the connector: Press down the metal tab to slide back the rear panel of the metal housing.
- Remove the green rubber seal to access the locking ring.
- Align the tool: Insert the C4-0016-000-000 removal tool into the receptacle housing. The tool is designed to fit specifically around the 12 and 17 pin signal insulators.
- Unlock the insulator: Use the tool to push and disengage the internal locking mechanism that holds the signals insulator in place.

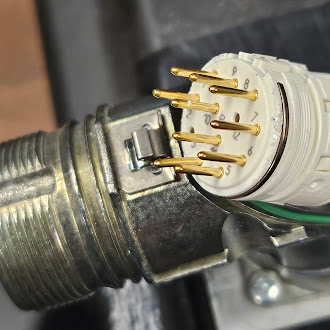

- Remove the insulator by pushing back through the rear of the metal housing.
